Lots of clearance means you can run meatier tyres (700x45 mm) for tackling chunkier gravel and terrain.
All cables—mechanical, electronic, or hydraulic—are completely concealed within the stem and routed through the headset, creating an exceptionally clean and streamlined appearance. This design not only enhances the bike's aesthetics but also provides aerodynamic advantages for the rider.

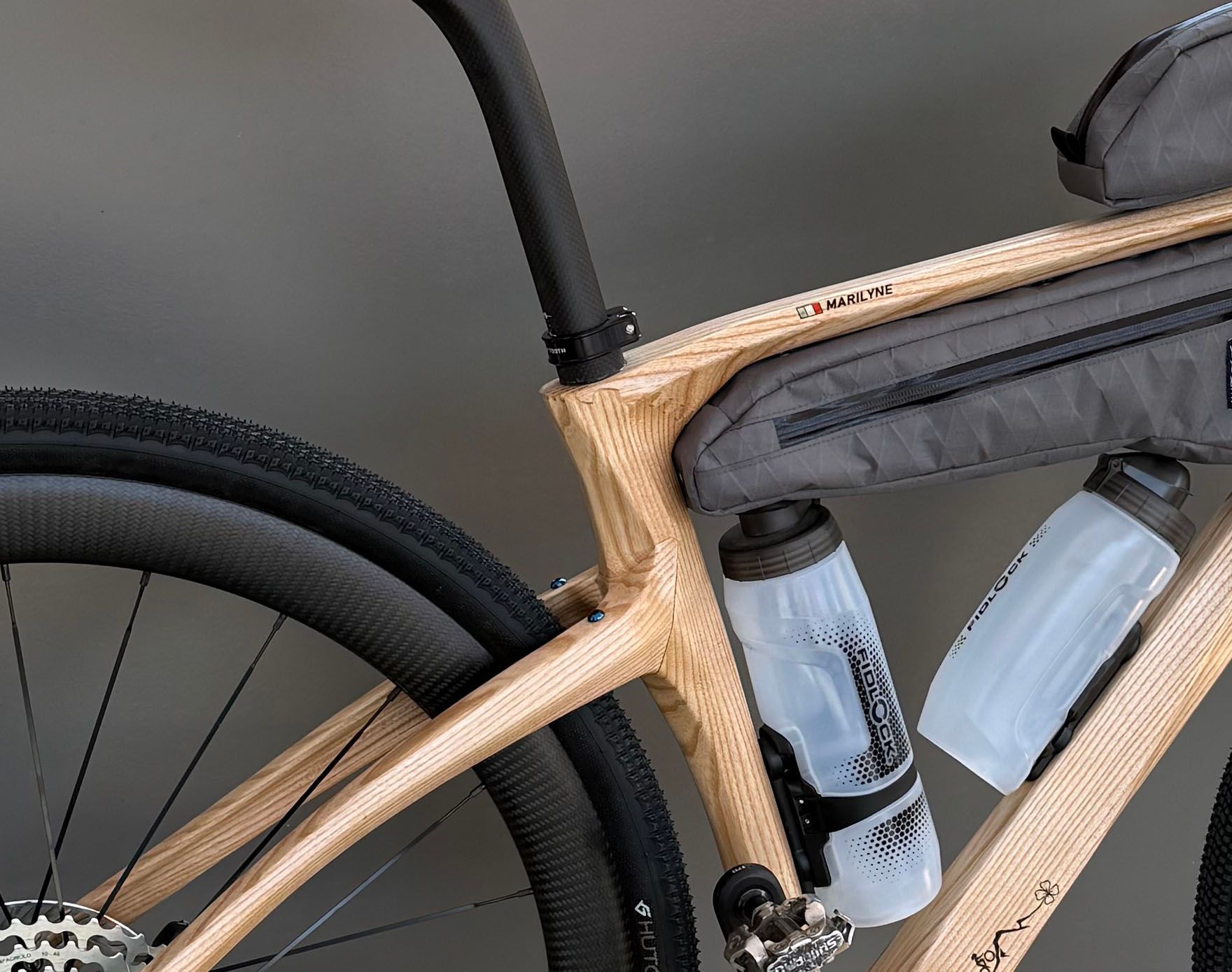

Integrated frame bag and mudguard mounts make it easy to carry gear and water.
| Dimensions (mm) | Code | BRN XS | BRN S | BRN M | BRN L | BRN XL | BRN XXL |
|---|---|---|---|---|---|---|---|
| Stack | STACK | 555 | 575 | 595 | 616 | ||
| Reach | REACH | 383 | 394 | 404 | 414 | ||
| Chain stay | BL | 428 | 428 | 428 | 428 | ||
| Top tube | 547 | 564 | 580 | 596,5 | |||
| Seat tube length | SL | 461,4 | 492,9 | 526,1 | 549,6 | ||
| Head tube length | HL | 129 | 150 | 11 | 193 | ||
| Seat tube angle | SA | 73,5 | 73,5 | 73,5 | 73,5 | ||
| Head tube angle | HA | 70,5 | 70,5 | 70,5 | 70,5 | ||
| Bottom bracket drop | 75 | 75 | 75 | 75 | |||
| Fork length | FL | 400 | 400 | 400 | 400 | ||
| Fork rake | 45 | 45 | 45 | 45 | |||
| Rider mean size | 1675 | 1745 | 1815 | 1885 | |||
| Rider min size | 1640 | 1710 | 1780 | 1850 | |||
| Rider max size | 1710 | 1780 | 1850 | 1920 |
The BRANCHY delivers outstanding responsiveness and comfort, empowering you to tackle long distances and varied terrain with ease.
Crafted from ash wood, the BRANCHY's hollow frame consists of 10 CNC-machined wooden elements, reinforced with carbon inserts at critical interfaces—bottom bracket, seatpost, headset, and rear axle.
Most wooden elements are connected via high-strength finger joints, bonded with aerospace-grade epoxy adhesive.
Protected by a UV-resistant polyurethane varnish, the wooden frame can be cleaned with water like any conventional bike.
The frame weighs approximately 2.3 kg (Size L). A complete bike typically weighs around 9.7 kg (without pedals) when equipped with carbon wheels and a Shimano GRX 820 groupset.
The BRANCHY surprises with its lively feel and impressive efficiency, comparable to carbon frames. Its balanced stiffness offers a ride that is both responsive and comfortable—rigid enough for power transfer without being harsh.
Comfort & Damping: The Branchy feels like a magic carpet on rough terrain, thanks to its exceptional shock and vibration absorption—surpassing even titanium or steel. It allows the rider to stay seated longer and finish long rides with less fatigue.
Handling & Precision: The frame offers precise and confident handling. It holds lines well, resists torsional flex under hard braking, and feels solid and composed across varied terrain.
Overall Character: Comfortable, subtly responsive, and full of character, the BRANCHY delivers a refined and smooth ride. It’s a capable and inspiring partner for long-distance adventures.
Whether you're out for a fun ride, lining up for a race, packing light for a bikepacking adventure, touring long distances with fully loaded racks, or simply commuting with mudguards and panniers—BRANCHY is built to adapt.

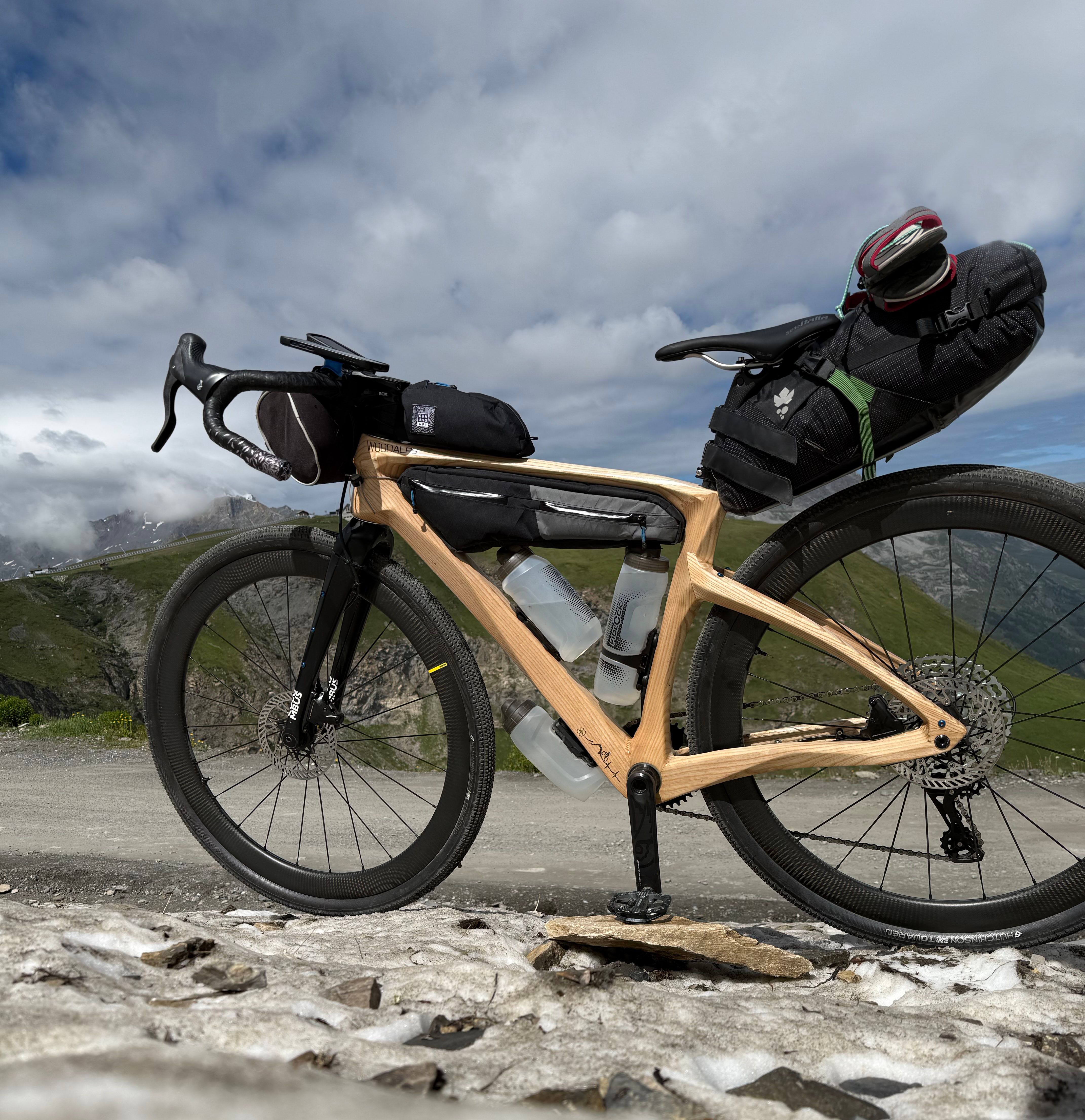

Its frame features multiple mounting points for bikepacking bags, racks, and fenders, offering true versatility across all terrains and use cases.
Add a personal touch to your WOODALPS wooden bike with our custom laser engraving service. Whether it’s your name, a meaningful date, a logo, or a short message, we’ll etch it directly into the frame with precision and care. A subtle yet distinctive way to make your bike truly one of a kind.
