| Dimensions (mm) | Code | YGGY XS | YGGY S | YGGY M | YGGY L | YGGY XL | YGGY XXL |
|---|---|---|---|---|---|---|---|
| Stack | STACK | 613 | 636,2 | 640,9 | 654,8 | ||
| Reach | REACH | 418,8 | 436,3 | 453,8 | 473,8 | ||
| Chain stay | BL | 440 | 440 | 440 | 440 | ||
| Seat tube length | SL | 390,4 | 431,9 | 465,4 | 493,5 | ||
| Head tube length | HL | 115,0 | 115,0 | 120,1 | 135,1 | ||
| Seat tube angle | SA | 73,5 | 73,5 | 73,5 | 73,5 | ||
| Head tube angle | HA | 68 | 68 | 68 | 68 | ||
| Bottom bracket drop | BBDROP | 55 | 55 | 55 | 55 | ||
| Fork length | FL | 506 | 531 | 531 | 531 | ||
| Crank length | 170 | 175 | 175 | 175 | |||
| Stem length | 50 | 60 | 60 | 60 | |||
| Handlebar length | 700 | 700 | 700 | 700 | |||
| Seatpost travel | 125 | 150 | 150 | 150 | |||
| Rear hub width | 148 | 148 | 148 | 148 | |||
| Bottom bracket width | 73 | 73 | 73 | 73 | |||
| Rider mean size | 1675 | 1745 | 1815 | 1895 | |||
| Rider min size | 1600 | 1710 | 1780 | 1850 | |||
| Rider max size | 1710 | 1780 | 1850 | 1940 |
In its cross-country configuration, the YGGY frame is designed for bike rides and even mountain bike races.

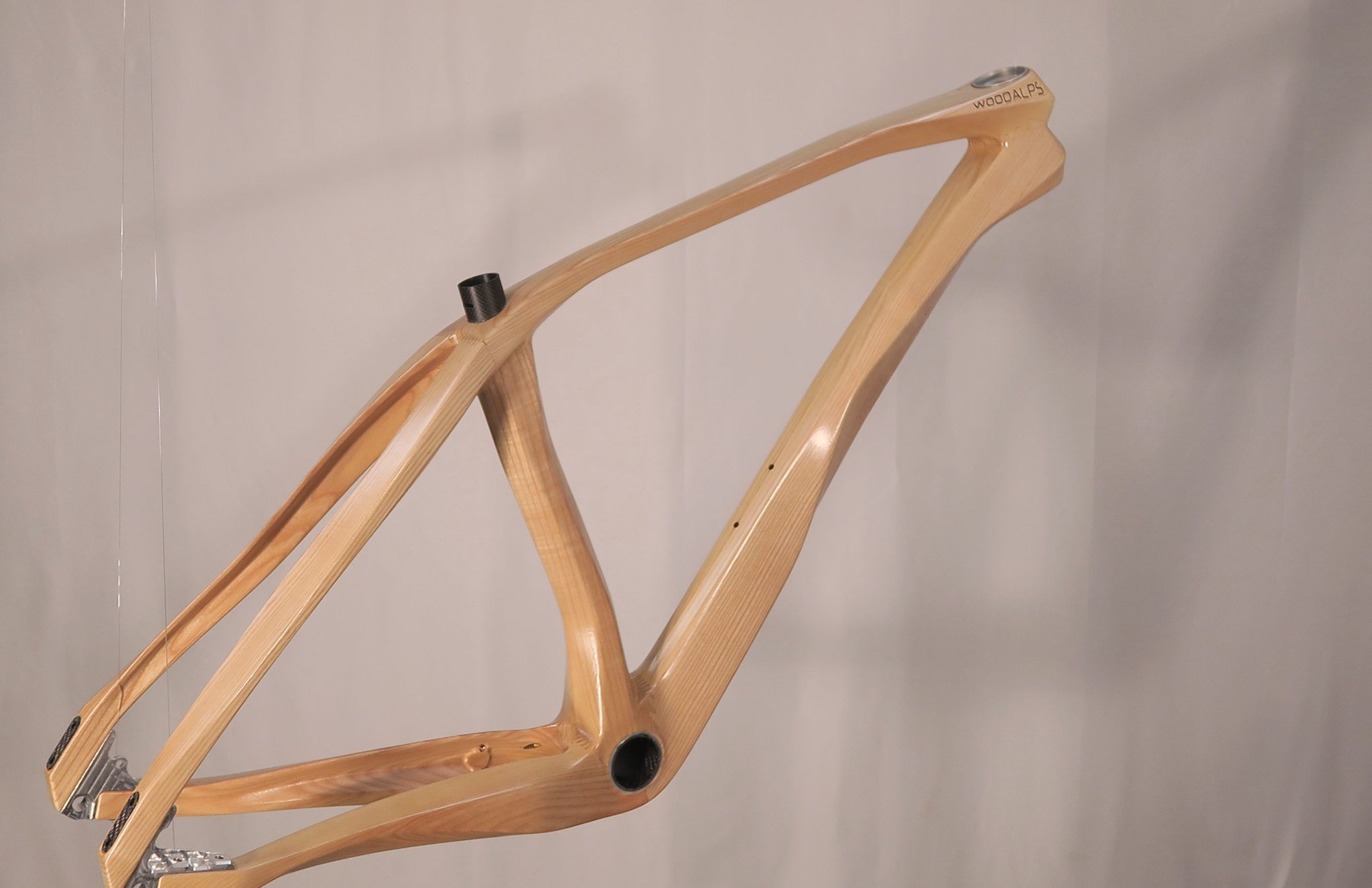

Crafted from ash wood, the YGGY hollow frame consists of 10 CNC-machined wooden elements, reinforced with carbon inserts at critical interfaces—bottom bracket, seatpost, headset, and rear wheel interface.
Most wooden elements are connected via high-strength finger joints, bonded with aerospace-grade epoxy adhesive.
Protected by a UV-resistant polyurethane varnish, the wooden frame can be cleaned with water like any conventional bike.
The YGGY is designed for cross country and trail. It surprises with its lively feel and impressive responsivness, comparable to carbon frames. Its balanced stiffness offers a ride that is both responsive and comfortable—rigid enough for power transfer without being harsh.
Agile, responsive, and built for speed, it’s made to follow your instincts on the trail. Whether you're climbing tight switchbacks or flowing through fast singletracks, YGGY responds with precision and confidence. With a geometry rooted in classic cross-country and trail riding, it finds the sweet spot between control and fun.
Its beauty, comfort, and performance come together to enhance the enjoyment of every ride.
Outfitted with a suspension fork, dropper seatpost, 2.3" tires, and clipless pedals, the full build comes in around 12 kg, depending on size and configuration (±1 kg). The frame itself weighs just 2.6 kg—but don’t let the lightness fool you: this bike is made to be ridden hard.
