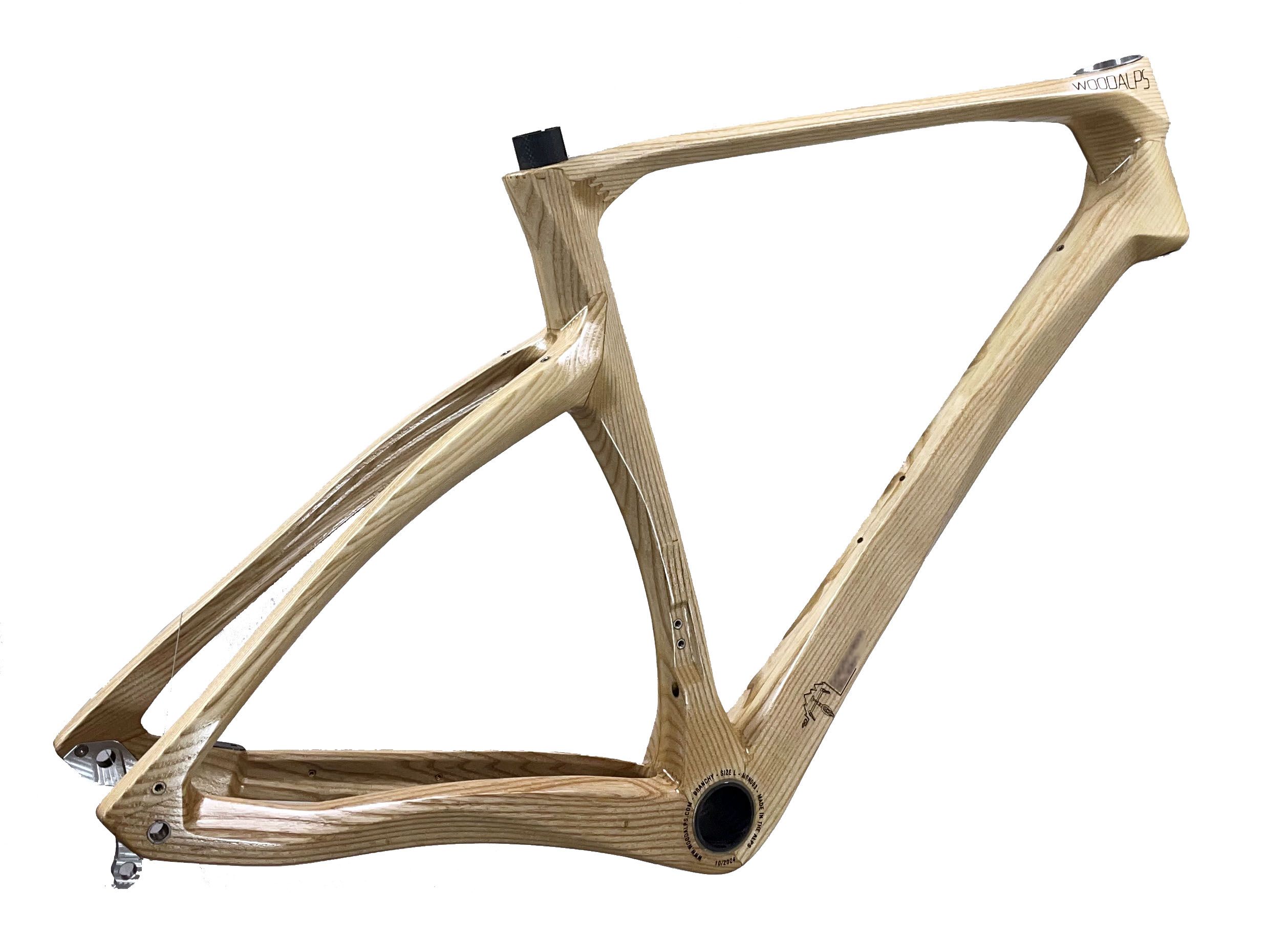

Description
You can order a frame, if you want to assemble the bike by yourself.
Technical Specifications
|
Headset interface |
DEDA DCR internal cable routing headset |
|
Bottom bracket interface |
PF30 (68mm width) To be used with SRAM wide components |
|
Rear axle interface |
12x142mm For axle 12×175 / M12x1.5mm, |
|
Seatpost interface |
31.6mm internal diameter |
|
Tire clearance |
Tire width up to 50mm |
|
Transmission |
1×12, 47.5mm 2×12 on request |
|
Weight |
Around 2.2kg |
BRANCHY frame size chart
| Size | S | M | L | XL |
| Rider mean height (cm) | 167.5 | 174.5 | 181.5 | 188.5 |
| Rider minimum height (cm) | 164.0 | 171.0 | 178.0 | 185.0 |
| Rider maximum height (cm) | 171.0 | 178.0 | 185.0 | 192.0 |
